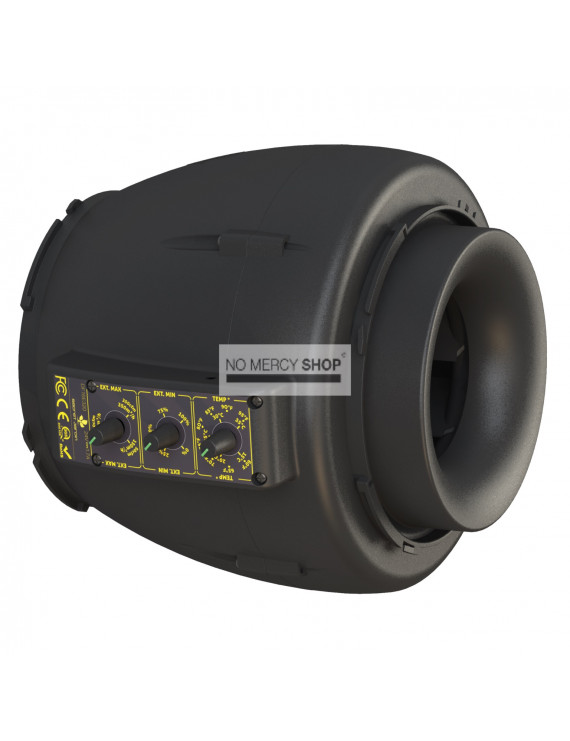

Secret Jardin DF16 T° Extractor 150/250/350 M3/H

The Secret Jardin DF16 T° Extractor 150/250/350 M3/H is designed to be attached to the Secret Jardin Ducting Flange system. Assembles in less than 5 seconds without tools. Use the extractor in conjunction with the Secret Jardin CTC80 Filters. However the extractor can also be connected to other standard filters using a duct flange connector and the corresponding rubber channels. The fan is equipped with a temperature control function and two heat sensors for indoor or outdoor use. The cover is made of flame retardant poyamide reinforced with fiberglass. (PA66 + 15% GF V0)

Included

• Extractor DF16E350
• Adapator DF16 Ring
• 2nd thermal sensor (external)
• 24V Deported Power Supply
• UE - UK - US Adapter.

Specifications

• Article Number: DF16E350
• Power: 35W, 24 V, 1.5 A
• Cable: 24V/240 cm, 110V-220V/60 cm, voltage/110-220V, frequency/50/60 Hz
• Working temperature: Min 0°C - Max 40°C
• Storage temperature: Min -20°C - Max 60°C
• Sound: Ext Max 150m3/h: 36 dB, Ext Max 250m3/h: 54 dB, Ext Max 350m3/h: 61 dB.
